steel structure hall
Steel Structure Exhibition Hall

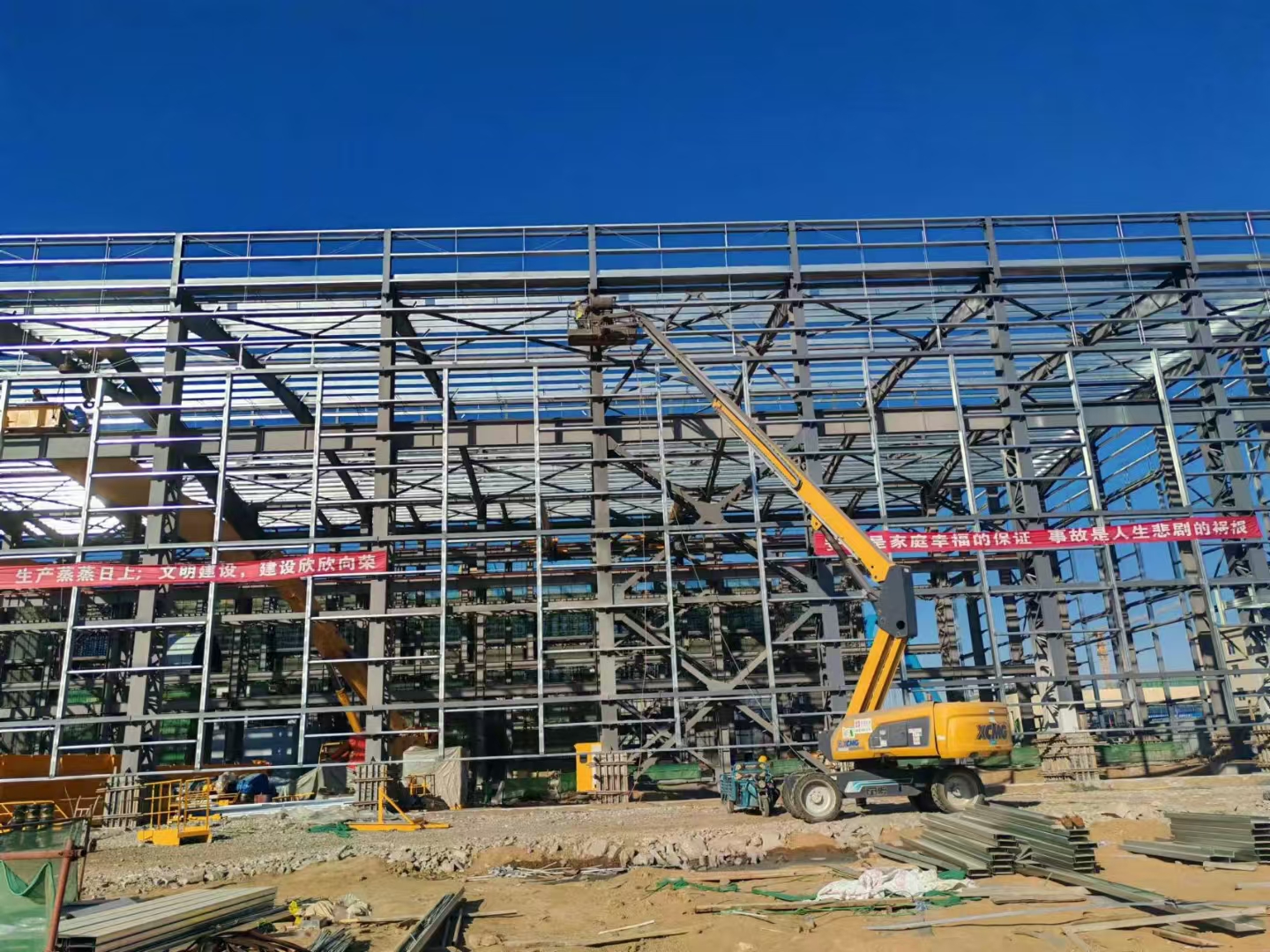

A steel structure hall is a large, open-span building constructed primarily from steel components such as beams, columns, and trusses. These halls are versatile and can serve a wide range of purposes, from warehouses and industrial buildings to sports arenas, exhibition spaces, and more. Steel structure halls offer numerous benefits, including durability, cost-effectiveness, and flexibility, making them a popular choice across various industries.
| Item Name | Materials Characteristics | Material Grade | Surface Treatment |
| Steel Column | H shape,Box,Steel Pipe,Hot tolled sheet | Q235B/A36,Q345B/A572 Gr 50 | Paint or Hot dip Galvanized |
| Steel beam | H shape,Box,Steel Pipe,Hot tolled sheet | Q235B/A36,Q345B/A572 Gr 50 | Paint or Hot dip Galvanized |
| Steel Bracing | Steel Rod,Steel Pipe,Angle Steel | Q235B/A36,Q345B/A572 Gr 50 | Paint or Hot dip Galvanized |
| Steel Purlin | C or Z purlins(Thickness1.8mm~3.0mm) | Q235B/A36,Q345B/A572 Gr 50 | Hot dip Galvanized |
| External Wall panels,Roof panels | Single colorful corrugate steel sheet,sandwich panels with EPS,Rock wool,PU. | Galvanized Steel+Painting | Alu-zin 150g,Fluorocarbon pain |
| Steel buildings Door | Slidding or Rolling door | Steel or Aluminum sheet | Paint or Hot dip galvanized |
| Steel buildings Windows | Aluminum alloy-Glass,Aluminum alloy-shutter | T=1.0-2.0mm | Alloy |
| Skylighting panels | FRP T=1.5mm-1.8mm | Coefficient of thermal expansion:2.2x10-5/cm | Light Tranmitar 85% |
| Ventilator | Turbine ventilator on a ridge | Steel,Stainless steel ,PC | Paint or Hot dip Galvanized |
| Gutter | Galvanized steel plate,Stainless steel plate | T=2.0mm | Hot dip galvanized |
| Downpipe | PVC pipe,color steelpipe Y=0.5mm | Dia110mm | paint |
| Hight Bolt | Ordinary ,High strength | 10.9S,4.8S | Hot dip galvanized,Steel |
| anchor bolts | Steel RodM24,M27,M30,M33,M39,M42 | 10.9S | Steel |
