A prefab metal warehouse building is a type of structure that is pre-engineered and constructed using metal components, typically steel, which are fabricated off-site and then assembled at the final location. These buildings are widely used for various applications, including storage, manufacturing, and distribution, due to their efficiency, durability, and versatility. Here’s a comprehensive overview of prefab metal warehouse buildings, including their features, benefits, applications, and considerations.

Key Features

Pre-engineered Components: The metal components of these buildings, such as columns, beams, and panels, are manufactured in a factory setting. This ensures consistent quality and allows for precise engineering tailored to specific needs.

Modular Design: Prefab metal warehouses are designed to be modular, meaning they can be easily expanded or reconfigured as business needs change. This flexibility is a significant advantage for growing businesses.

Clear Span Construction: Many prefab metal warehouses feature a clear span design, allowing for wide-open interior spaces without the need for internal support columns. This maximizes usable floor space, making it ideal for storage and manufacturing operations.

Durability: Metal buildings are resistant to fire, pests, and harsh weather conditions. They are designed to last for many years with minimal maintenance, making them a cost-effective investment.

Energy Efficiency: Many prefab metal warehouses can be designed with energy-efficient features, such as proper insulation, energy-efficient windows, and natural lighting systems, which help reduce heating and cooling costs.

Quick Assembly: The prefabrication process allows for faster construction times. Once the components arrive on-site, assembly can proceed quickly, minimizing downtime for businesses.

Customization Options: These buildings can be tailored to meet specific operational needs, including different roof styles, wall materials, loading docks, office spaces, and more.

Item NameMaterials CharacteristicsMaterial GradeSurface Treatment
Steel ColumnH shape,Box,Steel Pipe,Hot tolled sheetQ235B/A36,Q345B/A572 Gr 50Paint or Hot dip Galvanized
Steel beamH shape,Box,Steel Pipe,Hot tolled sheetQ235B/A36,Q345B/A572 Gr 50Paint or Hot dip Galvanized
Steel BracingSteel Rod,Steel Pipe,Angle SteelQ235B/A36,Q345B/A572 Gr 50Paint or Hot dip Galvanized

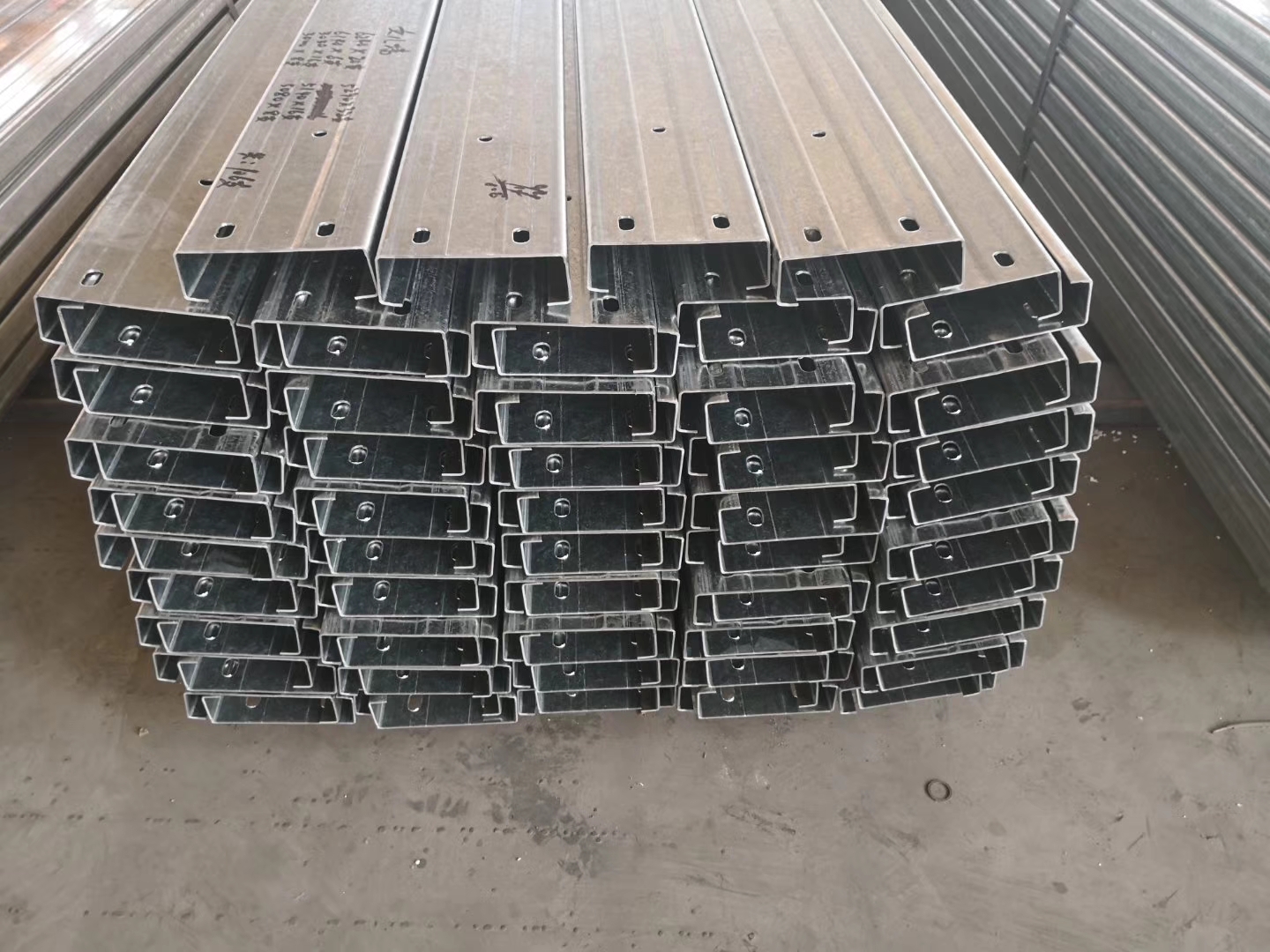

Steel PurlinC or Z purlins(Thickness1.8mm~3.0mm)Q235B/A36,Q345B/A572 Gr 50Hot dip Galvanized
External Wall panels,Roof panelsSingle colorful corrugate steel sheet,sandwich panels with EPS,Rock wool,PU.Galvanized Steel+PaintingAlu-zin 150g,Fluorocarbon pain
Steel buildings DoorSlidding or Rolling doorSteel or Aluminum sheetPaint or Hot dip galvanized
Steel buildings WindowsAluminum alloy-Glass,Aluminum alloy-shutterT=1.0-2.0mmAlloy
Skylighting panelsFRP T=1.5mm-1.8mmCoefficient of thermal expansion:2.2x10-5/cmLight Tranmitar 85%
VentilatorTurbine ventilator on a ridgeSteel,Stainless steel ,PCPaint or Hot dip Galvanized
GutterGalvanized steel plate,Stainless steel plateT=2.0mmHot dip galvanized
DownpipePVC pipe,color steelpipe Y=0.5mmDia110mmpaint
Hight BoltOrdinary ,High strength10.9S,4.8SHot dip galvanized,Steel
anchor  boltsSteel RodM24,M27,M30,M33,M39,M4210.9SSteel
