prefabricated metal warehouse

prefabricated metal warehouse

A prefabricated metal warehouse is a type of building that is constructed using pre-manufactured steel components that are assembled on-site. This approach offers several advantages, including cost-effectiveness, speed of construction, and flexibility in design. Here are some key aspects of prefabricated metal warehouses:

Key Features

Pre-Manufactured Components: The main structural elements, such as beams, columns, and panels, are manufactured in a factory and then transported to the construction site for assembly. This process ensures consistent quality and reduces construction time.

Speed of Construction: Since many components are produced off-site, the assembly process can be completed quickly, allowing businesses to occupy the space sooner.

Cost-Effectiveness: Prefabrication can reduce labor costs and minimize material waste, leading to overall lower construction costs. Additionally, the speed of construction can reduce financing costs.

Customizable Designs: Prefabricated metal warehouses can be tailored to meet specific needs, including different sizes, heights, and layouts. Options for insulation, doors, windows, and other features can also be included.

Durability and Low Maintenance: Metal warehouses are resistant to common issues such as rot, pests, and fire. They require minimal maintenance compared to traditional construction materials.

Energy Efficiency: Many prefabricated metal warehouses can be designed with energy-efficient features, such as insulation and ventilation systems, which can lower heating and cooling costs.

Sustainability: Steel is a recyclable material, and many manufacturers incorporate sustainable practices into their production processes.

Item NameMaterials CharacteristicsMaterial GradeSurface Treatment

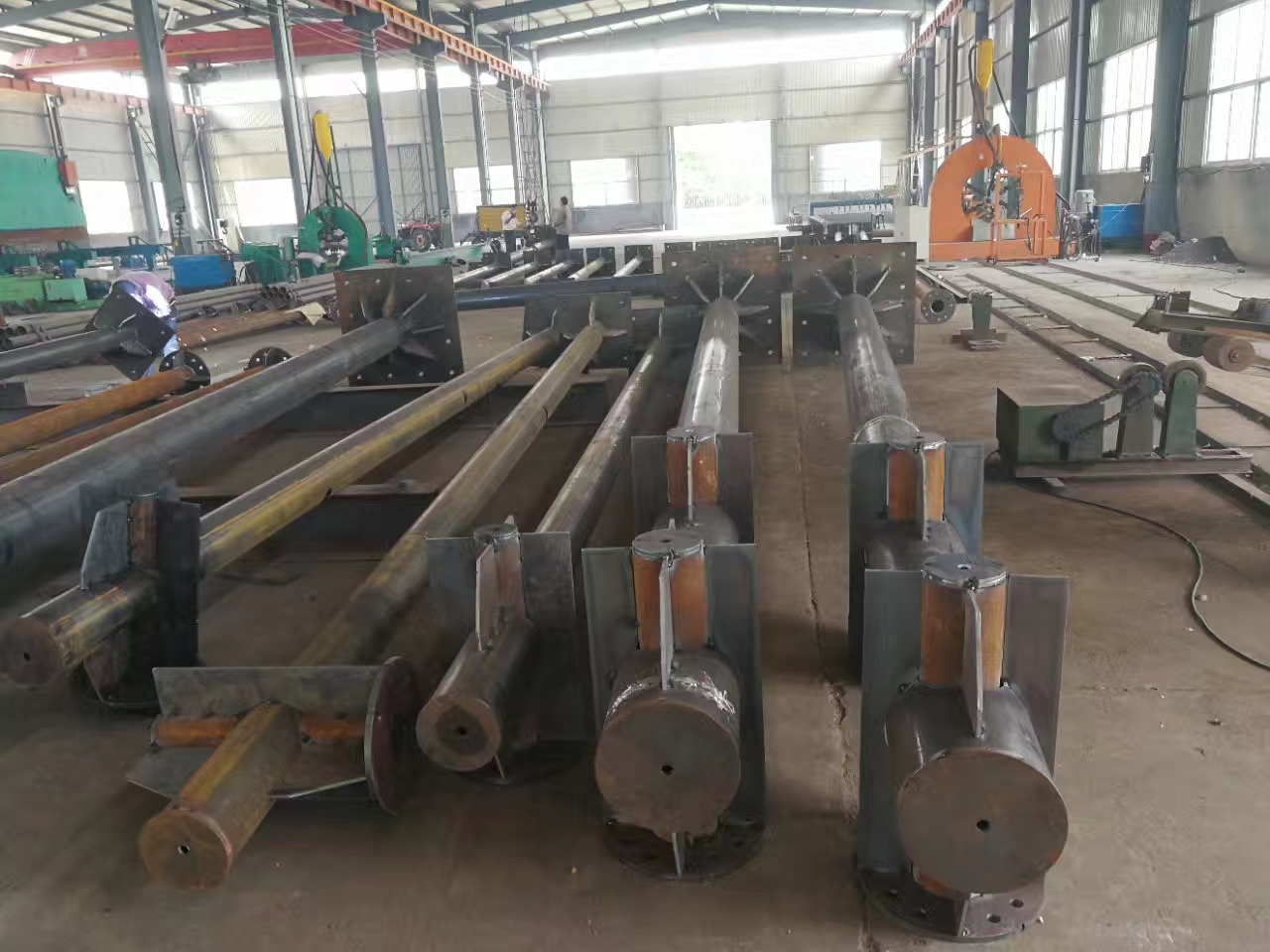

Steel ColumnH shape,Box,Steel Pipe,Hot tolled sheetQ235B/A36,Q345B/A572 Gr 50Paint or Hot dip Galvanized
Steel beamH shape,Box,Steel Pipe,Hot tolled sheetQ235B/A36,Q345B/A572 Gr 50Paint or Hot dip Galvanized
Steel BracingSteel Rod,Steel Pipe,Angle SteelQ235B/A36,Q345B/A572 Gr 50Paint or Hot dip Galvanized
Steel PurlinC or Z purlins(Thickness1.8mm~3.0mm)Q235B/A36,Q345B/A572 Gr 50Hot dip Galvanized

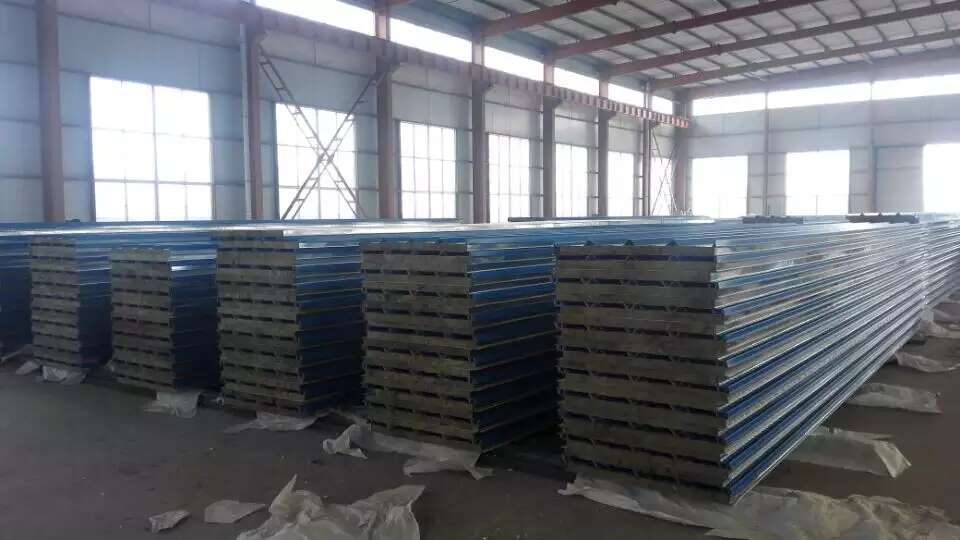

External Wall panels,Roof panelsSingle colorful corrugate steel sheet,sandwich panels with EPS,Rock wool,PU.Galvanized Steel+PaintingAlu-zin 150g,Fluorocarbon pain
Steel buildings DoorSlidding or Rolling doorSteel or Aluminum sheetPaint or Hot dip galvanized
Steel buildings WindowsAluminum alloy-Glass,Aluminum alloy-shutterT=1.0-2.0mmAlloy
Skylighting panelsFRP T=1.5mm-1.8mmCoefficient of thermal expansion:2.2x10-5/cmLight Tranmitar 85%
VentilatorTurbine ventilator on a ridgeSteel,Stainless steel ,PCPaint or Hot dip Galvanized
GutterGalvanized steel plate,Stainless steel plateT=2.0mmHot dip galvanized
DownpipePVC pipe,color steelpipe Y=0.5mmDia110mmpaint
Hight BoltOrdinary ,High strength10.9S,4.8SHot dip galvanized,Steel
anchor  boltsSteel RodM24,M27,M30,M33,M39,M4210.9SSteel
