70 foot antenna tower
Monopole Cell Tower

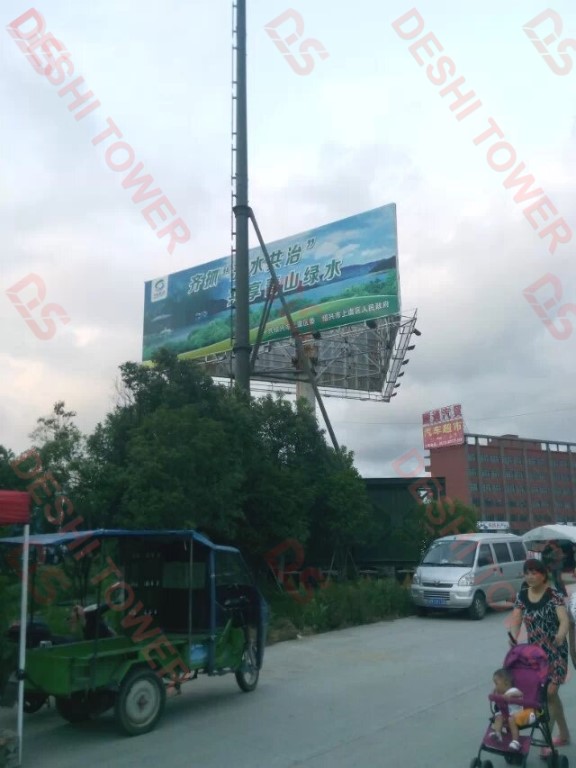

A 70-foot antenna tower is a robust and versatile structure designed to support various types of antennas used for communication purposes. Standing at an impressive height of 70 feet (approximately 21 meters), this tower is engineered to provide optimal elevation for transmitting and receiving signals over long distances, ensuring clear and reliable communication.

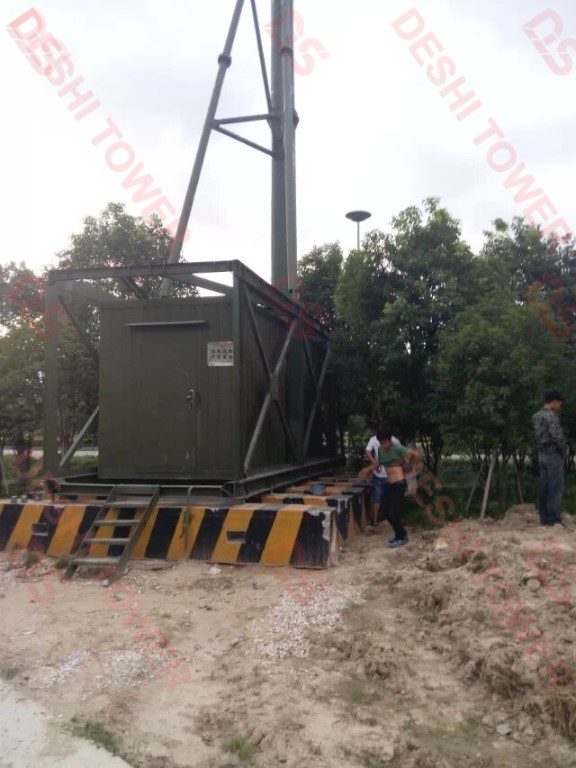

The construction of the tower typically involves high-strength galvanized steel to resist corrosion and withstand harsh environmental conditions. The tower consists of multiple sections, which are bolted together to achieve the full height. The base is usually anchored with a deep concrete foundation, providing stability and resistance against wind loads and other external forces. Each section is designed to interlock securely, ensuring structural integrity and ease of assembly.

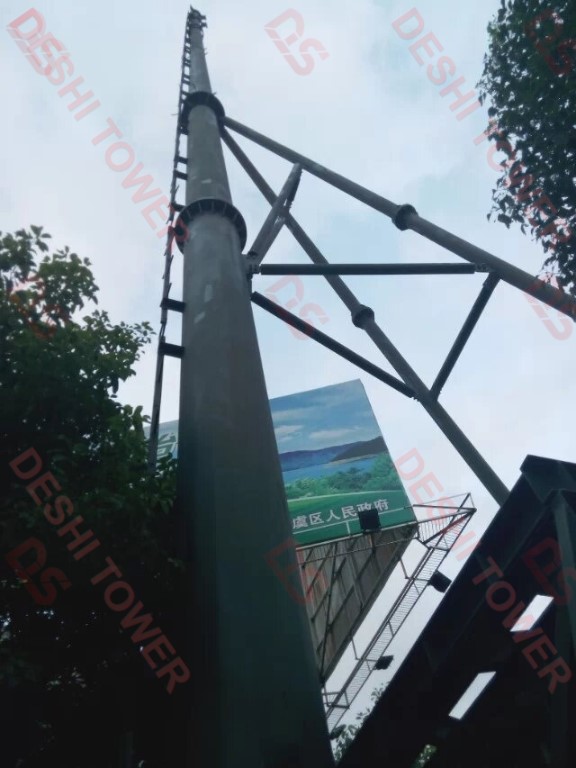

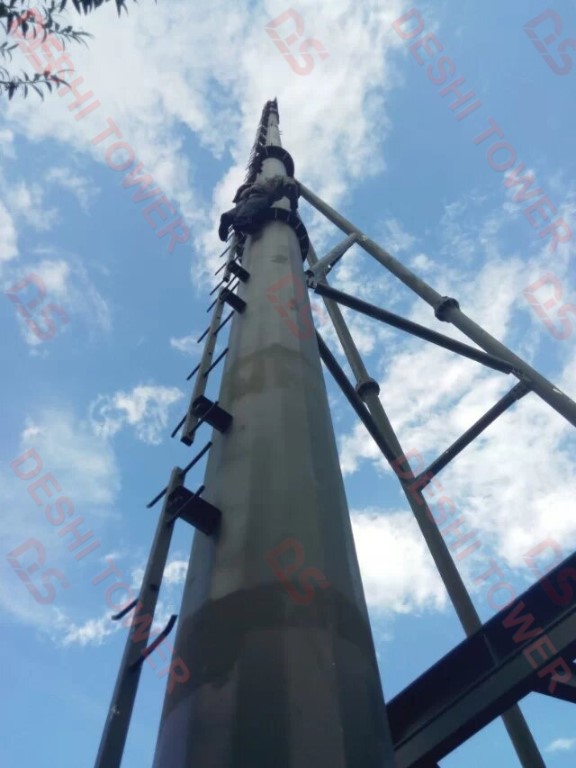

Safety is a paramount consideration in the design of a 70-foot antenna tower. The tower features climbing ladders or pegs with safety cages or fall arrest systems to protect technicians during installation and maintenance. Anti-climb panels or fences may be installed at the base to prevent unauthorized access. Lightning protection systems, including grounding rods and conductors, are integrated to safeguard the equipment and the structure itself from lightning strikes.
The tower is engineered to accommodate various types of antennas, including VHF, UHF, microwave, and cellular antennas. Mounting brackets and platforms are strategically placed along the tower to facilitate the attachment of antennas and other communication equipment. The height of 70 feet provides a significant advantage in minimizing obstructions and optimizing line-of-sight, which is crucial for effective signal propagation.
| Product | 70 foot antenna tower |
| Shape | Polygonal or Conical |
| Material | Normally Q345B/A572, Minimum Yield Strength ≥ 345 N/mm² Q235B/A36, Minimum Yield Strength ≥ 235 N/mm². OR Q420 Q460 ASTM A572 GR65, GR50, SS400 |
| Surface treatment | Hot dip galvanized Following ASTM A 123, BS729 or as client required. |
| connection | Slip joint, flanged connected,or bolt connection |
| Standard | ISO 9001:2008 |
| Height: | 70 foot |
| Surface treatment: | galvanization and color painted |
| Welding Standard | AWS (American Welding Society ) D 1.1 |
| Production Process | Raw material test → Cutting →Welding →Hole drilling →Dimension verify →sample assemble → surface clean→ Galvanization or powder coating ,painting →Recalibration →Packages |
| Packages | Packing with plastic paper, steel box or according to client’s request. |
Deshi Tower specializes in the design, manufacture, and construction support of transmission towers, communication towers, steel structures, and observation towers.
Transmission tower design adheres to ASCE/SEI standards. Telecommunication tower design follows ANSI/TIA-222 standards. We are not just manufacturers and suppliers, but also your technical support and partners.
