- Provide global users with the design, manufacturing, supply, and installation of steel towers and structures.
-
Weifang ,Shandong，P.R.C
-
-

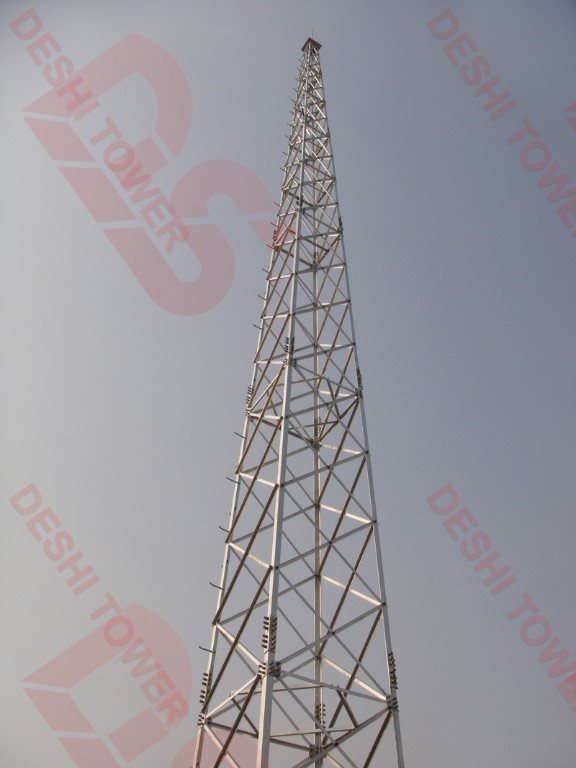

gsm antenna tower
Self-Supporting Towers
A GSM antenna tower, also known as a cellular tower or mobile phone tower, is a tall structure designed to support antennas and communication equipment for GSM (Global System for Mobile Communications) networks. These towers are a fundamental component of cellular infrastructure, providing coverage and capacity for mobile phone and data services.
The design of a GSM antenna tower typically includes a sturdy framework that supports multiple GSM antennas, transceivers, and other equipment necessary for transmitting and receiving mobile phone signals. These towers are strategically located to ensure optimal coverage and signal strength within a given geographic area, forming a network of interconnected towers to provide seamless mobile connectivity.
GSM antenna towers play a crucial role in facilitating voice calls, text messaging, and mobile data services for cellular subscribers. They enable the transmission of signals between mobile devices and the cellular network infrastructure, allowing for communication over long distances and across diverse terrains.
Overall, GSM antenna towers are essential for the operation of cellular networks, serving as the backbone for mobile communication services and enabling widespread access to mobile connectivity for users in urban, suburban, and rural areas.
| Product | gsm antenna tower |
| Shape | lattice |
| Material | Normally Q345B/A572, Minimum Yield Strength ≥ 345 N/mm² Q235B/A36, Minimum Yield Strength ≥ 235 N/mm². OR Q420 Q460 ASTM A572 GR65, GR50, SS400 |
| Surface treatment | Hot dip galvanized Following ASTM A 123, BS729 or as client required. |
| connection | bolt connection |
| Standard | ISO 9001:2008 |
| Height: | 20 ft, 25 ft, 30 ft, 40 ft, 50 ft, 60 ft, 70 ft, 75 ft, 80 ft, 100 ft, 200 ft, etc. |
| Surface treatment: | galvanization and color painted |
| Welding Standard | AWS (American Welding Society ) D 1.1 |

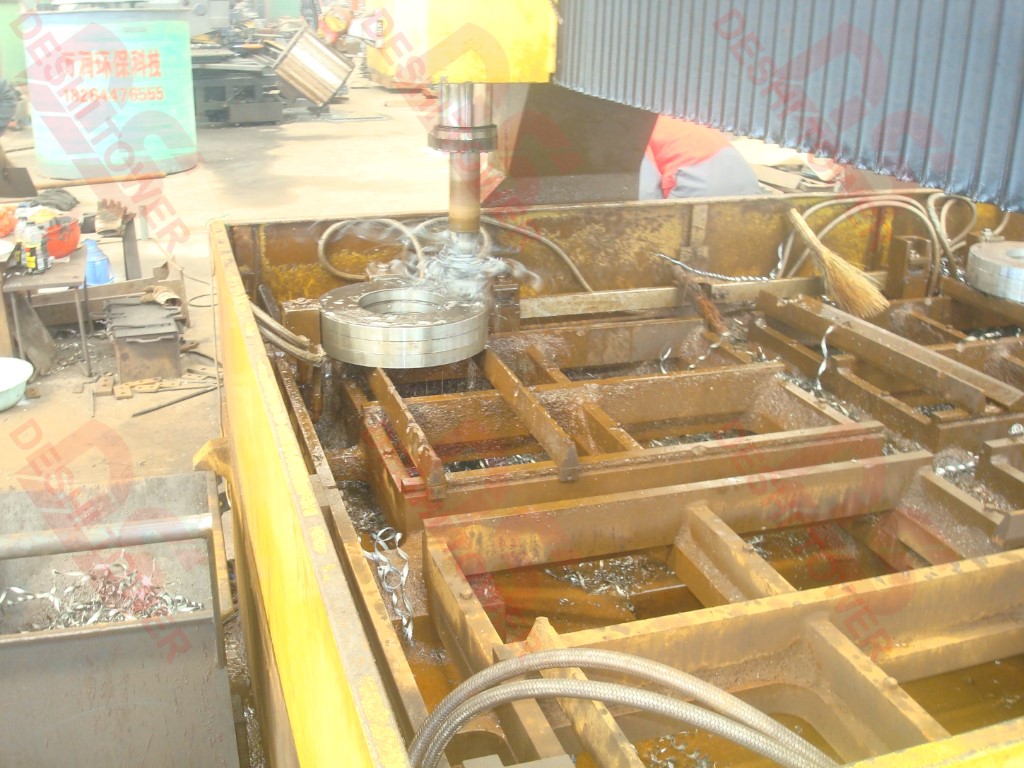

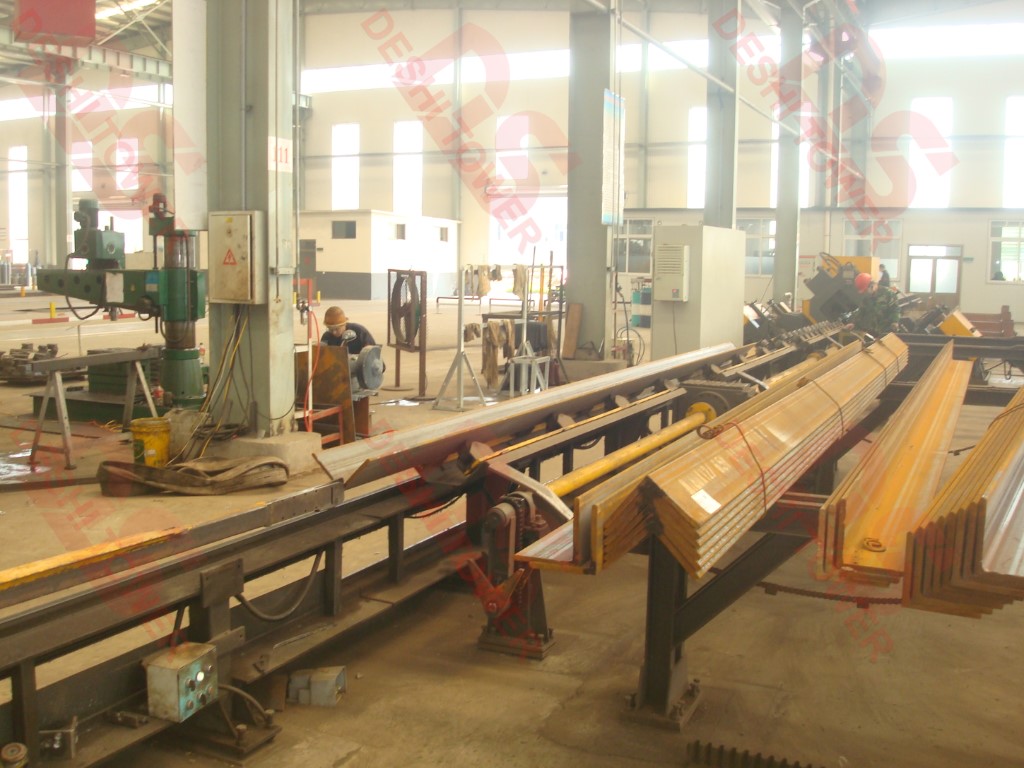

| Production Process | Raw material test → Cutting →Welding →Hole drilling →Dimension verify →sample assemble → surface clean→ Galvanization or powder coating ,painting →Recalibration →Packages |
| Packages | Packing with plastic paper, steel box or according to client’s request. |
Deshi Tower specializes in the design, manufacture, and construction support of transmission towers, communication towers, steel structures, and observation towers.
Transmission tower design adheres to ASCE/SEI standards. Telecommunication tower design follows ANSI/TIA-222 standards. We are not just manufacturers and suppliers, but also your technical support and partners.
If you need professional product quotations, technical & construction support, please email to us or submit the following sheet, we will contact you in 24 hours and pls check your emailbox. Your connection information will just be known by ourselves.
