telecom lattice tower
Self-Supporting Towers

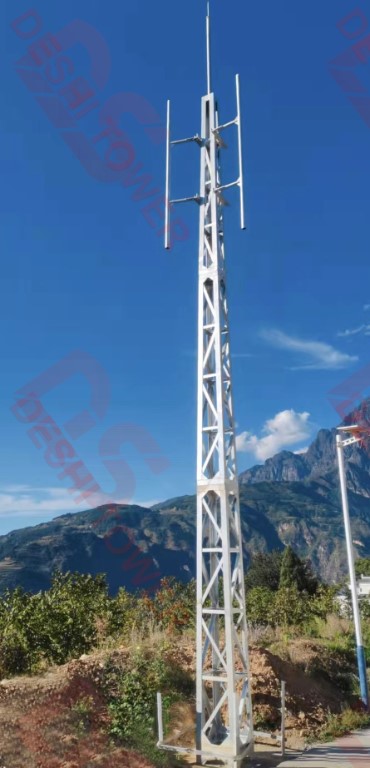

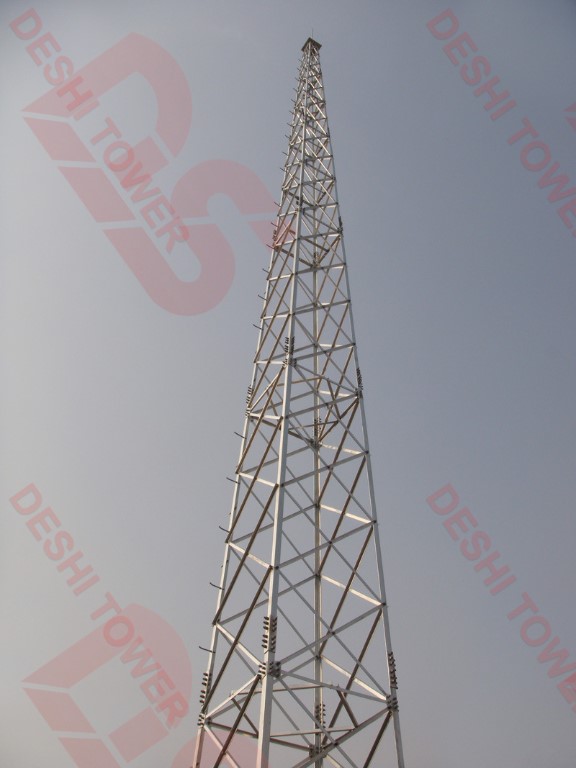

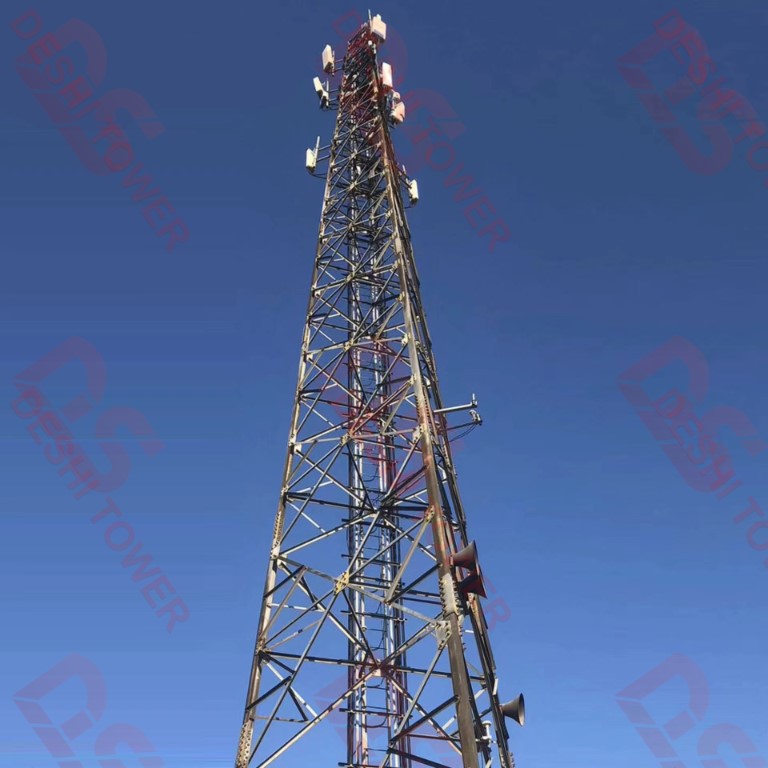

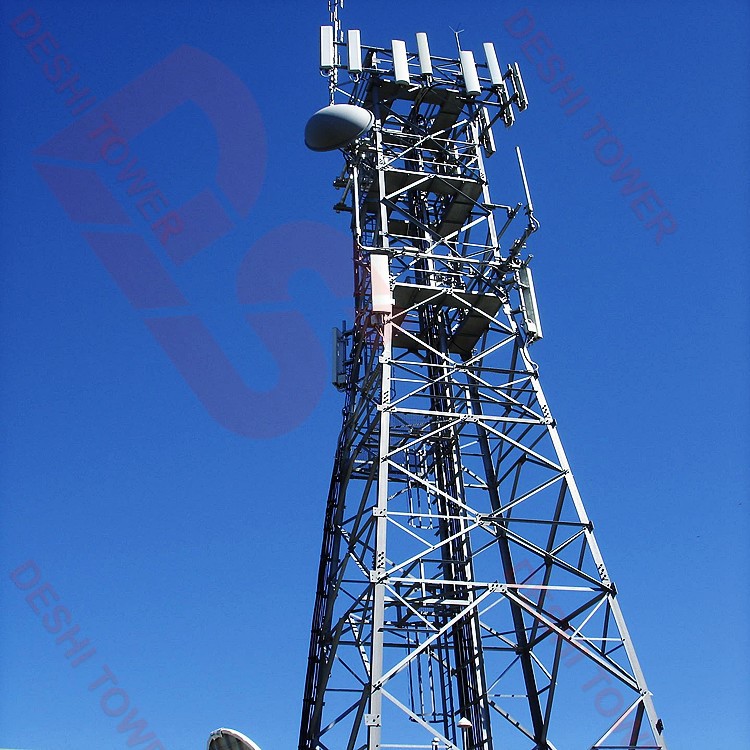

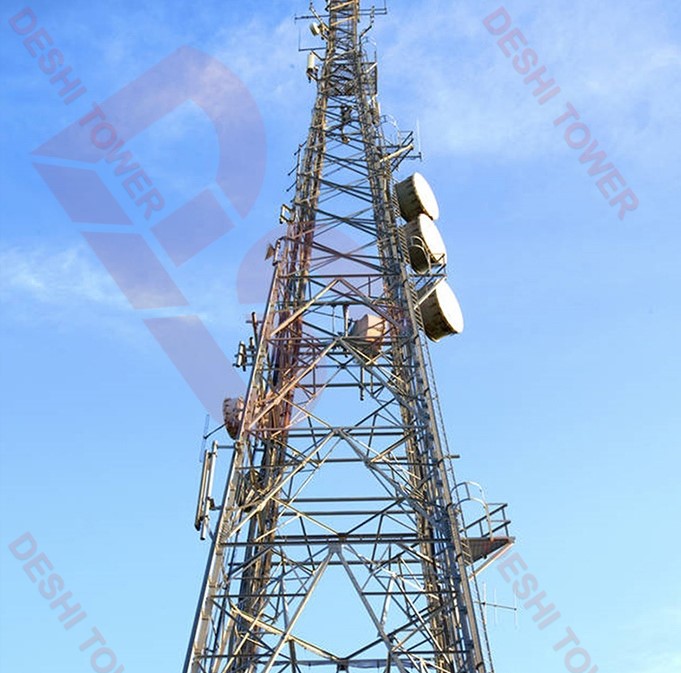

A telecom lattice tower, also known as a lattice communication tower, is a tall structure made up of interconnected steel lattice sections. These towers are commonly used to support various types of telecommunication equipment, such as antennas, transmitters, and receivers for wireless communication, including cellular networks, radio, and microwave transmissions.
Lattice towers are popular in the telecommunications industry due to their strength, stability, and ability to support heavy loads. The lattice structure provides excellent structural integrity while allowing for the installation of multiple antennas and other equipment at different heights on the tower.
These towers are often seen in urban and rural areas, where they play a critical role in providing wireless communication services to a wide area. They are typically owned and operated by telecommunication companies or infrastructure providers and are essential for the functioning of cellular networks and other wireless communication systems.
| Product | telecom lattice tower |
| Shape | lattice |
| Material | Normally Q345B/A572, Minimum Yield Strength ≥ 345 N/mm² Q235B/A36, Minimum Yield Strength ≥ 235 N/mm². OR Q420 Q460 ASTM A572 GR65, GR50, SS400 |
| Surface treatment | Hot dip galvanized Following ASTM A 123, BS729 or as client required. |
| connection | bolt connection |
| Standard | ISO 9001:2008 |
| Height: | 20 ft, 25 ft, 30 ft, 40 ft, 50 ft, 60 ft, 70 ft, 75 ft, 80 ft, 100 ft, 200 ft, etc. |
| Surface treatment: | galvanization and color painted |
| Welding Standard | AWS (American Welding Society ) D 1.1 |
| Production Process | Raw material test → Cutting →Welding →Hole drilling →Dimension verify →sample assemble → surface clean→ Galvanization or powder coating ,painting →Recalibration →Packages |
| Packages | Packing with plastic paper, steel box or according to client’s request. |
Deshi Tower specializes in the design, manufacture, and construction support of transmission towers, telecom lattice towers, steel structures, and observation towers.
Transmission tower design adheres to ASCE/SEI standards. Teletelecom lattice tower design follows ANSI/TIA-222 standards. We are not just manufacturers and suppliers, but also your technical support and partners.
If you need professional product quotations, technical & construction support, please email to us or submit the following sheet, we will contact you in 24 hours and pls check your emailbox. Your connection information will just be known by ourselves.
