110kv overhead line tower
Lattice Transmission Tower
A 110kV overhead line tower is a structure designed to support high voltage electric power lines for efficient power transmission over long distances. These towers are part of the essential infrastructure for electrical grids, ensuring that electricity generated at power plants is effectively distributed to substations and then to consumers.
Design and Characteristics:
Height and Build: 110kV towers are typically taller than lower voltage towers to provide the necessary clearance from the ground and other structures for safety reasons. Their height varies based on the terrain, the amount of clearance required by local regulations, and the configuration of the power lines.
Structure Type:

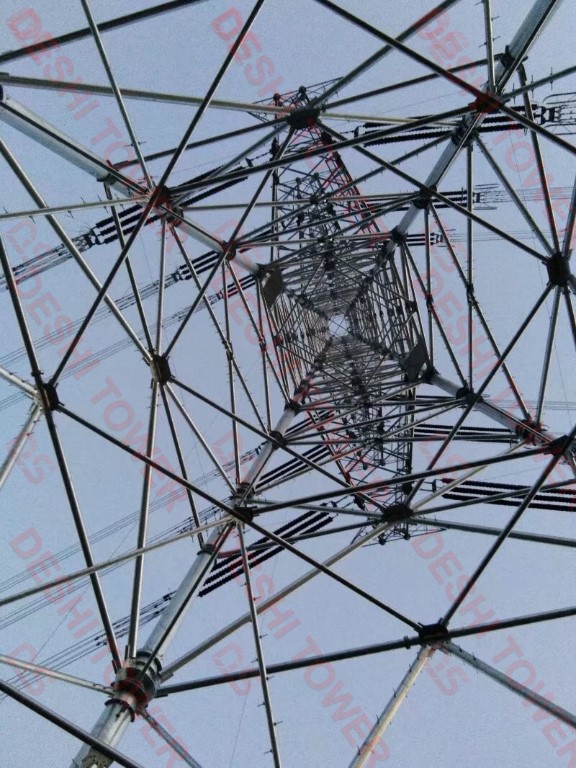

Lattice Towers: Made from bolted steel sections, forming a wide base that tapers to the top, lattice towers are the most common type due to their strength and material efficiency.
Monopoles: Increasingly popular in urban or constrained areas, monopole towers are cylindrical structures that require less land space but tend to be more expensive than lattice types.
Foundation: The foundation of a 110kV tower must be robust enough to support the weight of the tower and the dynamic loads caused by the wind and the weight of the ice on the cables, if applicable. Foundations are usually made of concrete and are designed based on the soil type and environmental load factors.
In summary, 110kV overhead line towers are crucial for the reliable distribution of electricity, designed with specific technical and safety considerations to handle environmental and operational stresses efficiently.
| Product | 110kv overhead line tower |
| Shape | lattice |
| Material | Normally Q345B/A572, Minimum Yield Strength ≥ 345 N/mm² Q235B/A36, Minimum Yield Strength ≥ 235 N/mm². OR Q420 Q460 ASTM A572 GR65, GR50, SS400 |
| Electric Voltage | 110kv |
| Surface treatment | Hot dip galvanized Following ASTM A 123, BS729 or as client required. |
| connection | bolt connection |
| Standard | ISO 9001:2008 |
| Height: | below 60 meters |
| Surface treatment: | galvanization and color painted |
| Welding Standard | AWS (American Welding Society ) D 1.1 |
| Production Process | Raw material test → Cutting →Welding →Hole drilling →Dimension verify →sample assemble → surface clean→ Galvanization or powder coating ,painting →Recalibration →Packages |
| Packages | Packing with plastic paper, steel box or according to client’s request. |
Deshi Tower specializes in the design, manufacture, and construction support of transmission towers, communication towers, steel structures, and observation towers.
Transmission tower design adheres to ASCE/SEI standards. Telecommunication tower design follows ANSI/TIA-222 standards. We are not just manufacturers and suppliers, but also your technical support and partners.
