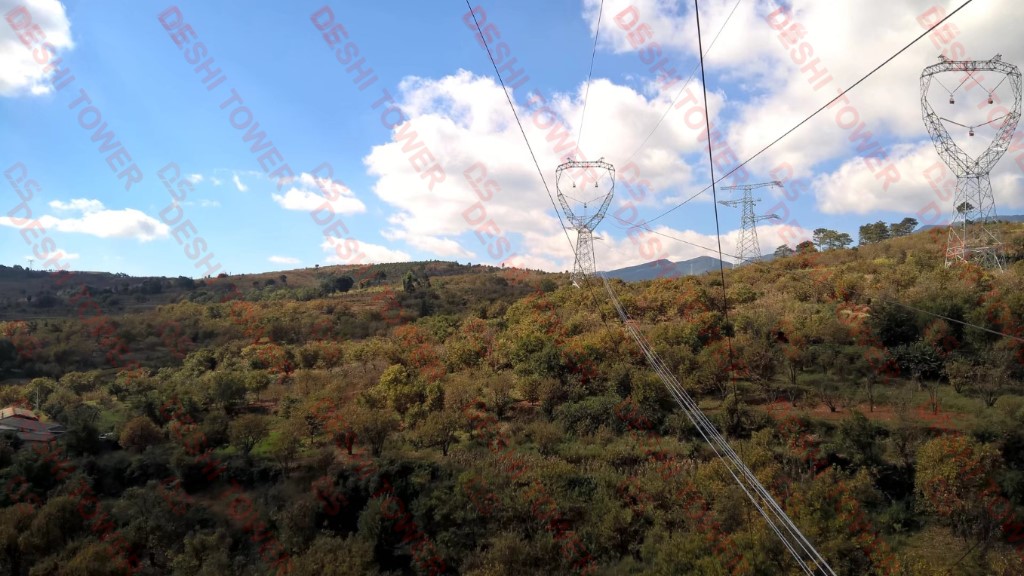

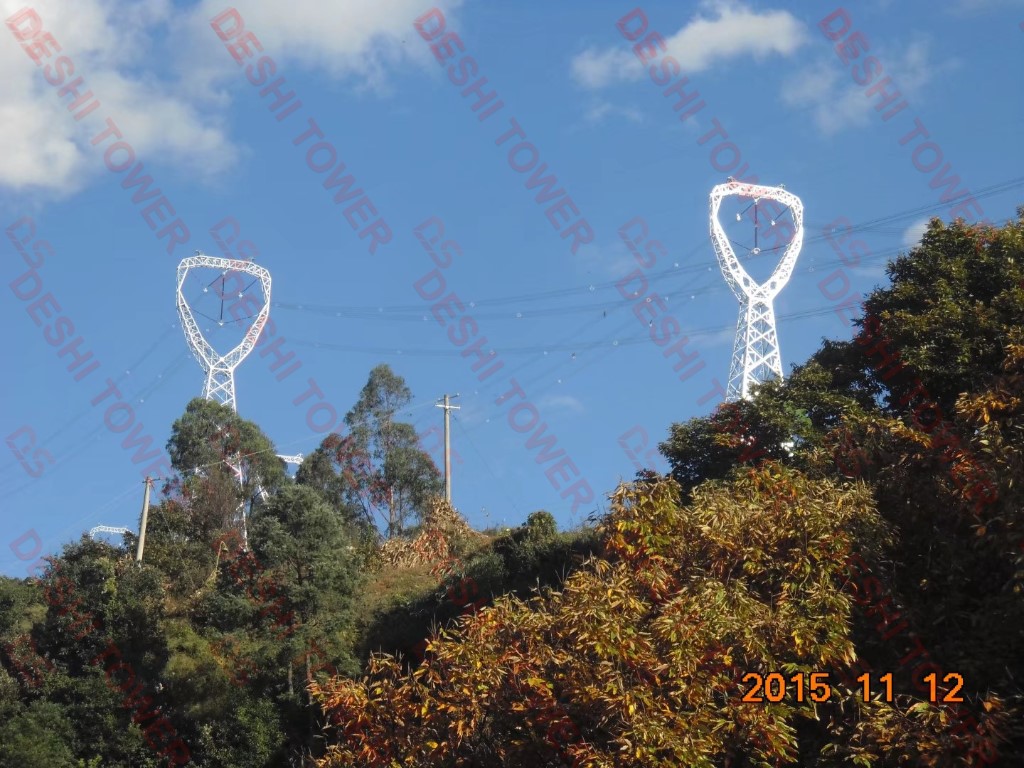

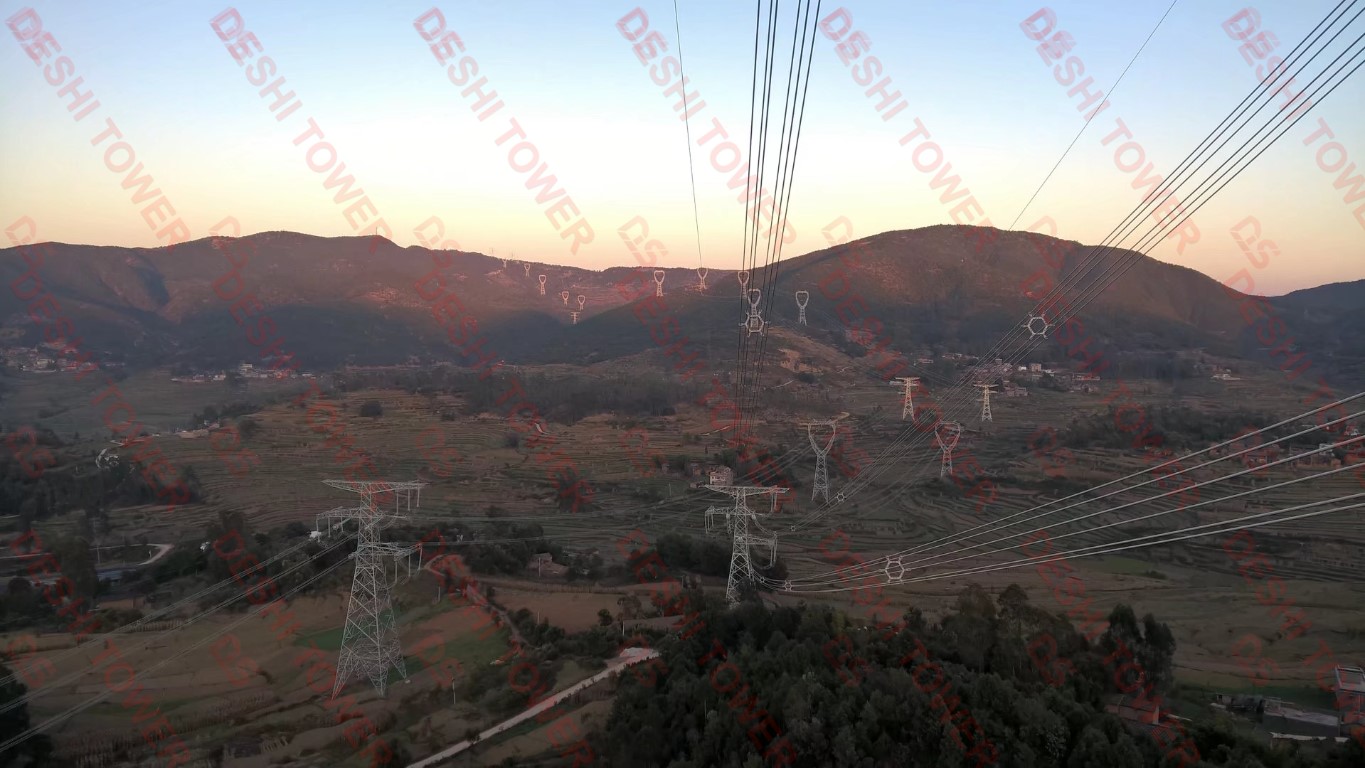

500kv overhead line tower

Producing 500kV overhead line towers involves a complex process that requires precision engineering, adherence to strict safety and performance standards, and meticulous attention to environmental and regulatory compliance. These towers are crucial for high-voltage, long-distance transmission of electrical power, necessitating robust construction and reliable performance under various environmental conditions.

Key Steps in the Production of 500kV Overhead Line Towers:

1. Design and Engineering:Structural Analysis: Engineers design the tower structure using computer-aided design (CAD) tools. They perform simulations and structural analyses to ensure the tower can withstand environmental stresses such as wind, ice, and seismic activity.Electrical Considerations: The design must ensure adequate clearance for the high-voltage lines to prevent arcing and maintain safe distances from the ground and other structures.
2. Material Procurement:High-quality steel is typically used for its durability and strength. The steel might be galvanized to protect against corrosion, especially in harsh environmental conditions.
3. Manufacturing Process:Cutting and Shaping: Steel components are cut and shaped according to the design specifications.Welding and Assembly: Components are assembled and welded into sections at the manufacturing facility.Galvanizing: After assembly, the sections are often galvanized to enhance corrosion resistance.
4. Testing:Assembled parts undergo various tests to ensure structural integrity and compliance with international standards, such as ANSI, IEC, or specific national standards depending on the market.
5. Transportation:The tower components, typically manufactured in sections, are transported to the site. Special transportation logistics may be required due to the oversized nature of some components.
6. Site Preparation and Foundation Construction:The site is prepared, which may involve leveling the ground, removing vegetation, and constructing access roads.Foundations are constructed to support the tower’s weight and operational loads, often involving deep excavation and concrete pouring.
7. Tower Erection:The tower sections are assembled on-site. This process often requires cranes and skilled workers to ensure precise assembly and alignment.Additional elements such as insulators and grounding systems are installed.
8. Quality Assurance and Site Testing:Once erected, the tower and its components are inspected and tested to ensure they meet all operational requirements and safety standards.
9. Integration into the Grid:Finally, conductors are strung, and the tower is integrated into the existing grid network. This step involves coordination with grid operators and compliance with operational protocols.

Considerations:

• Environmental Impact: The production and installation process includes measures to minimize environmental impact, such as avoiding ecologically sensitive areas and restoring vegetation around the installation site.
• Regulatory Compliance: Each phase must comply with local, national, and international regulations, which can include environmental, safety, and labor standards.

Manufacturers involved in producing 500kV towers often have decades of experience and capabilities in heavy engineering and logistics, ensuring that the towers meet the highest standards of quality and reliability.

Deshi Tower specializes in the design, manufacture, and construction support of transmission towers, communication towers, steel structures, and observation towers.

Transmission tower design adheres to ASCE/SEI standards. Telecommunication tower design follows ANSI/TIA-222 standards. We are not just manufacturers and suppliers, but also your technical support and partners.
