single circuit transmission tower
Lattice Transmission Tower
A single circuit transmission tower is designed to support a single set of three-phase electrical conductors or power lines. These towers are a fundamental component of electrical transmission networks, carrying electricity over long distances from power stations to substations or distribution areas. Single circuit towers are commonly used in areas where the power demand is relatively low or where right-of-way issues limit the space available for larger towers.
Key Features of Single Circuit Transmission Towers:
1. Structure: These towers are typically more slender and less robust than their double circuit counterparts. They consist of a single vertical structure with cross-arms to support one set of three-phase conductors.
2. Design: The design of single circuit towers often focuses on cost-effectiveness and land use efficiency. The towers can vary in height and design depending on the voltage of the lines they carry and the environmental conditions of their location.
3. Material: Most single circuit towers are made of steel, which provides durability and strength. In some cases, especially for lower voltage lines, lighter materials such as aluminum or a combination of steel and aluminum may be used.
| Product | single circuit transmission tower |
| Shape | lattice |
| Material | Normally Q345B/A572, Minimum Yield Strength ≥ 345 N/mm² Q235B/A36, Minimum Yield Strength ≥ 235 N/mm². OR Q420 Q460 ASTM A572 GR65, GR50, SS400 |
| Electric Voltage | 10kv, 11kv, 32kv, 33kv, 35kv, 65kv, 66kv, 90kv, 92kv, 110kv, 115kv, 132kv, 220kv, 230kv, 300kv, 320kv, 330kv, 345kv, 380kv, 400kv 500kv, 750kv, 765kv, 800kv,850kv, 1000kv, 1100kv |

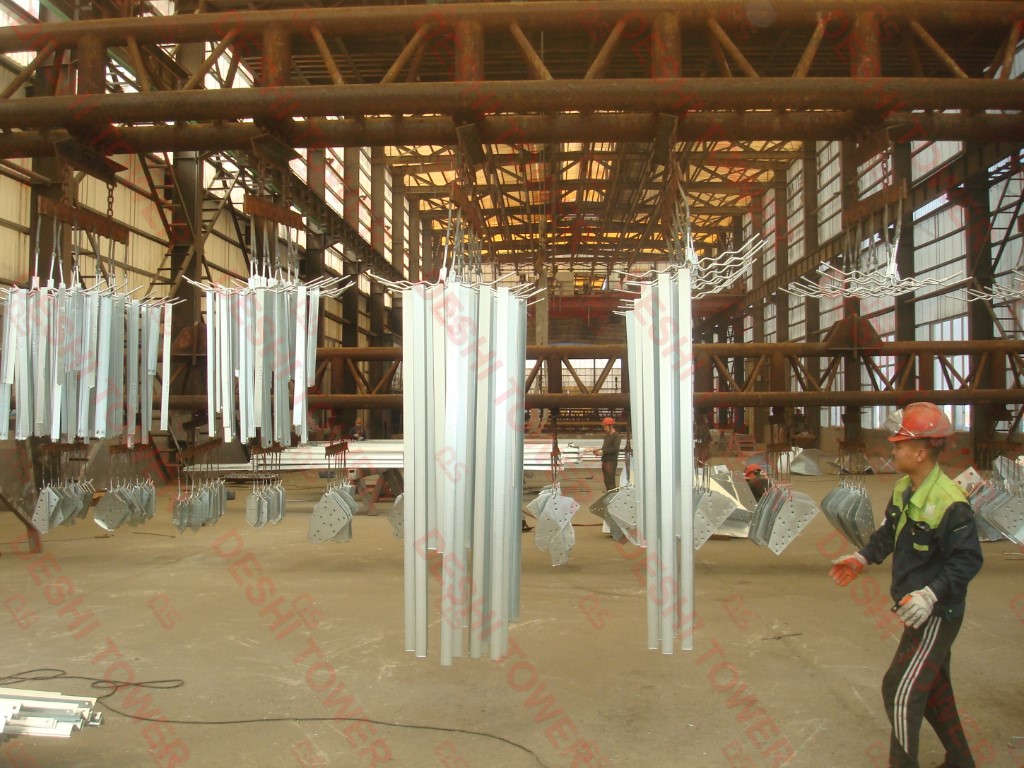

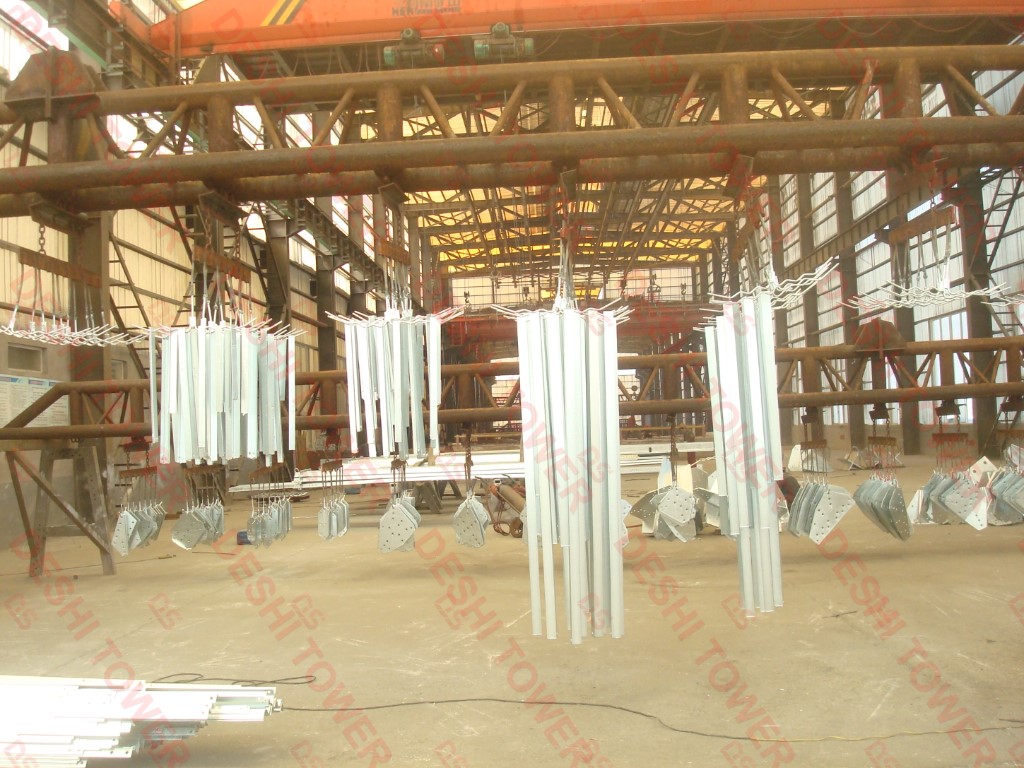

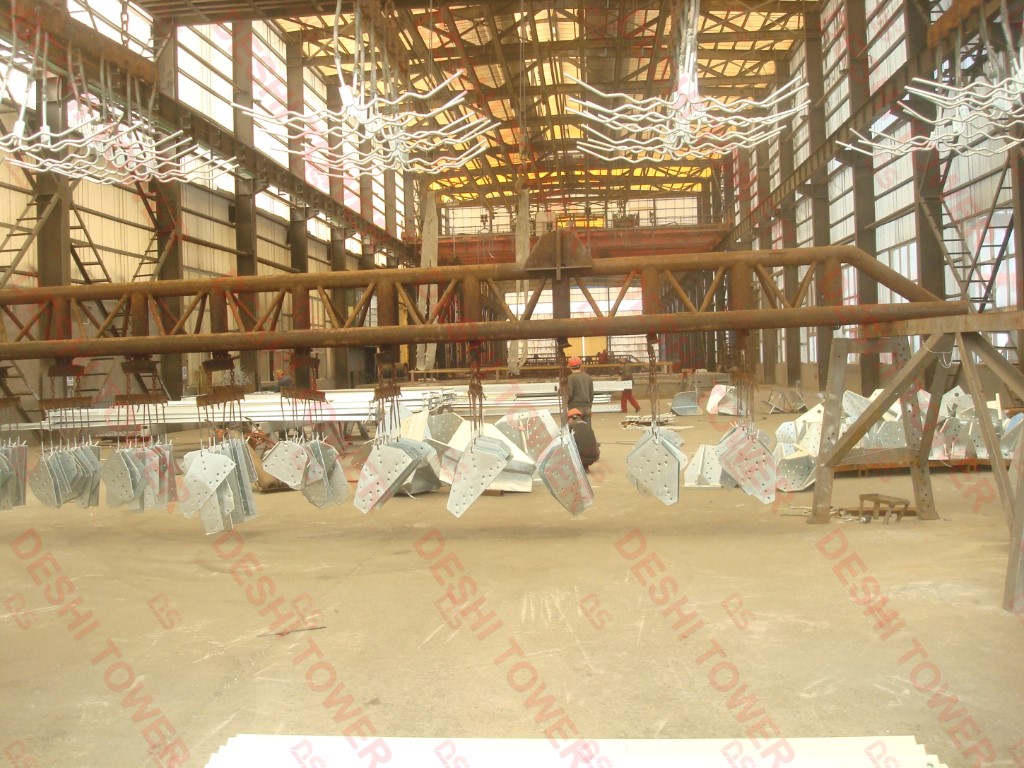

| Surface treatment | Hot dip galvanized Following ASTM A 123, BS729 or as client required. |
| connection | bolt connection |
| Standard | ISO 9001:2008 |
| Height: | below 60 meters |
| Surface treatment: | galvanization and color painted |
| Welding Standard | AWS (American Welding Society ) D 1.1 |
| Production Process | Raw material test → Cutting →Welding →Hole drilling →Dimension verify →sample assemble → surface clean→ Galvanization or powder coating ,painting →Recalibration →Packages |
| Packages | Packing with plastic paper, steel box or according to client’s request. |
Deshi Tower specializes in the design, manufacture, and construction support of transmission towers, communication towers, steel structures, and observation towers.
Transmission tower design adheres to ASCE/SEI standards. Telecommunication tower design follows ANSI/TIA-222 standards. We are not just manufacturers and suppliers, but also your technical support and partners.
